Home :: DIYGP PCBs & Kits

DIYGP PCBs & Kits

DIY guitar pedal effect projects

Project Difficulty Level

Beginner	The best choice for your first pedal!
Novice	A first time build for the confident or 2nd project
Intermediate	Some experience would be beneficial

Displaying 1 to 19 (of 19 products)

Product Image	Item Name+	Price
	* New * Smart Bypass - Attiny Controlled Relay Bypass Kit Difficulty: Novice Smart Bypass - Attiny Controlled Relay Bypass Kit Designed with reliability and durability in mind The Smart Bypass is a rock...	$22.00 $16.00 Save: 27% off
	10 Min Buffer Difficulty: Beginner 10 Min Buffer Just about the easiest / lowest part count buffer there is! Very small, a good candidate for a guitar cavity...	$4.00 ... more info
	10 Min Dirt & Boost Difficulty: Beginner 10 Min Dirt & Boost An excellent option for a beginner build! The 10 Min Dirt & Boost includes a volume control and clean boost...	$4.00 ... more info

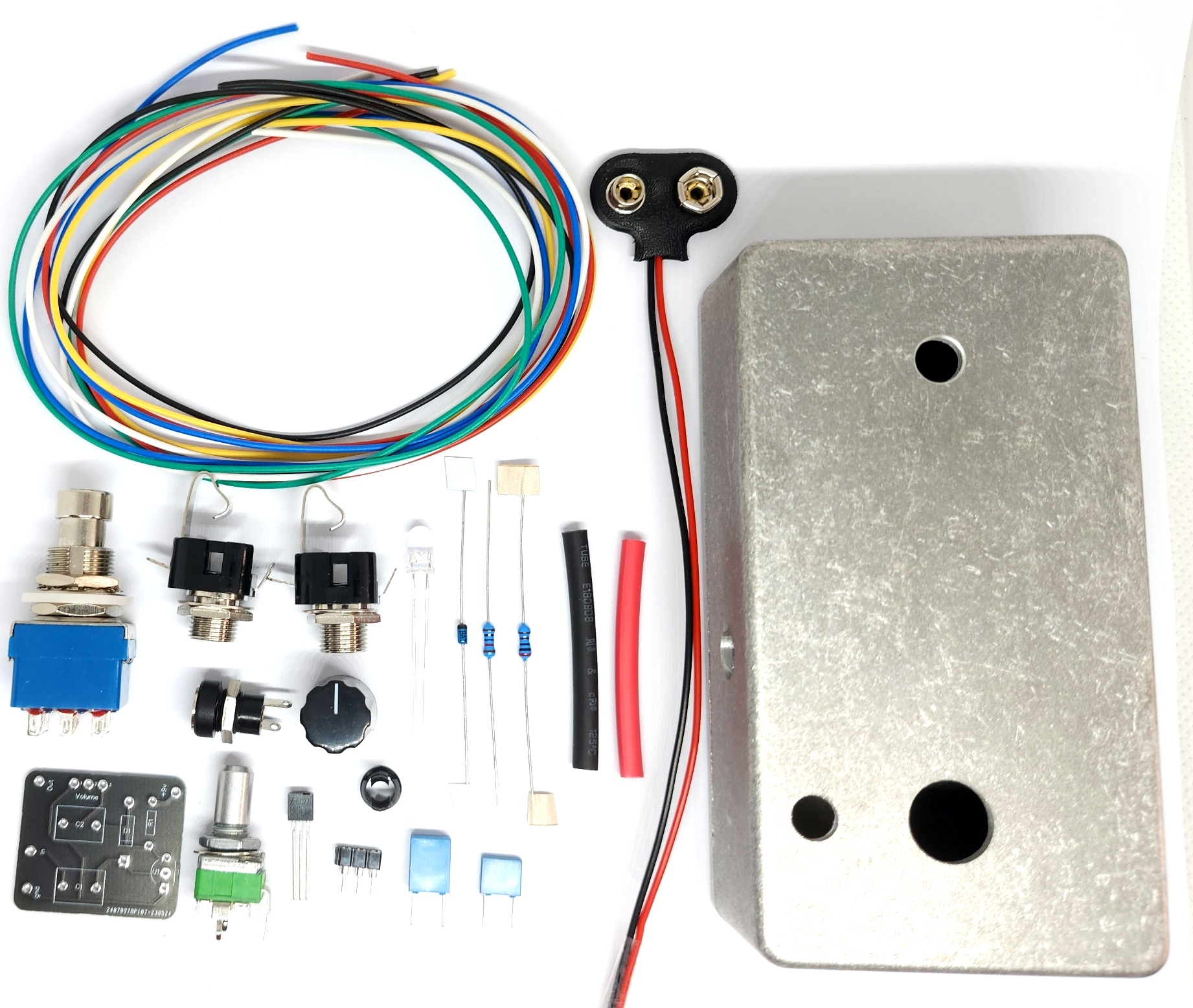

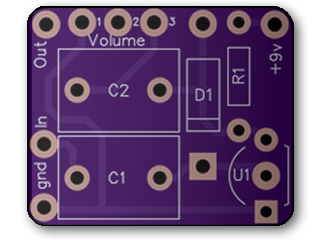

	7 Min Fuzz Difficulty: Beginner 7 Min Fuzz Possibly the easiest option to build your first guitar pedal effect! A very respectable fuzz with bare minimum...	$4.00 ... more info
	Berserker Fuzz - A Factory of Fuzz Difficulty: Intermediate Berserker Fuzz - A Factory of Fuzz The Berserker Fuzz is a vertible factory of fuzz. Another easy one for beginners this...	$8.00 ... more info
	Big Knob - 1Knob / BMP Tonestack Collision Difficulty: Novice Big Knob - 1Knob / BMP Tonestack Collision What do you get when a One Knob Fuzz collides with a Big Muff Pi Tone Stack? Ok, minds...	$5.50
	Chime Amp - 1 Watt Speaker / Headphone Amp Difficulty: Novice Chime Amp - 1 Watt Speaker / Headphone Amp The chime amp is an input buffered, low parts count 1 watt amplifier that can be used...	$6.00 ... more info
	Classic Boost - LPB1 Inspired Tone Controlled Boost Difficulty: Beginner Classic Boost - LPB1 Inspired Tone Controlled Boost A simple compact boost with an impressive boost range, the Classic Boost is...	$5.00 ... more info
	Compact 3PDT Wiring PCB Dimensions: 22mm x 16mm Compact 3PDT wiring PCB *** New Economy PCBs and New Low Price!!! Fabricatored 3PDT Mounting PCB. Contains pads for the LED...	$1.20
	De-Lux 3PDT Wiring PCB "De-Lux" 3PDT wiring PCB *** New Economy PCBs and New Low Price!!! "De-Lux" 3pdt mounting Pcb. Incredibly easy to follow 3pdt Mounting PCB solution....	$1.60
	Ember Drive - Overdrive Difficulty: Beginner Ember Drive - Overdrive A simple low part, compact overdrive. Use a low gain transistor for an overdriven sound, or put in an...	$5.00 ... more info
	FaceMaster - Germanium Fuzz Difficulty: Novice FaceMaster - Germanium Fuzz (Based on Fuzz Face®) The Facemaster (based on the Fuzz Face, includes tone control, Q2 bias...	$8.00 ... more info
	Hydra Fuzz - Tonebender Difficulty: Novice Hydra Fuzz - (Based on the Sola sound 3 knob Tonebender®) The Hydra Fuzz (based on the Sola Sound Tonebender 3 Knob). Simple to...	$9.00 ... more info
	Jfet Adapter Board (Sot23) Dimensions:4mm x 4mm (approximately) Jfet Adapter Board (Sot23) A SOT-23 adapter board for "converting" SMT Jfet's (mmbfj201 & mmbf5457 for example)...	$0.15 Min: 5
	Night Drive - Smooth Op Amp Overdrive Difficulty: Novice Night Drive - Smooth Op Amp Overdrive The Night Drive (based on the Lovepedal Eternity©); A friendly effect that plays nice...	$8.00 ... more info
	Power Inverter for Fuzz Pedals Difficulty Level Novice Power Inverter for Fuzz Pedals Very compact (approximantely only 2x2cm) this board will flip your +9v input to -9v output, to...	$2.00 ... more info
	ToneMaster - Germanium Booster Difficulty: Novice ToneMaster - Germanium Booster (Rangemaster®) Modified Dallas Rangemaster. The Tonemaster includes a tone control and very...	$7.00 ... more info
	Vulcan Drive - Sandbox Distortion Difficulty: Novice Vulcan Drive - Sandbox Distortion Using a dual op-amp the Vulcan drive is a bit of a 'sandbox' project, use this PCB to build a...	$7.00 ... more info
	Whipper Clipper - Easy Distortion Difficulty: Beginner Whipper Clipper An easy and inexpensive, highly modifiable classic distortion circuit. Dimensions: 34mm x 28mm PCB Sizing:...	$4.00 ... more info

Displaying 1 to 19 (of 19 products)
