7 Min Fuzz

$4.00

Please Choose:





Kit Options








Add to Cart:



  • 32 Units in Stock


Difficulty: Beginner

7 Min Fuzz


Possibly the easiest option to build your first guitar pedal effect! A very respectable fuzz with bare minimum components you wont believe your ears when you hear what this little circuit is capable of! Includes output volume control.

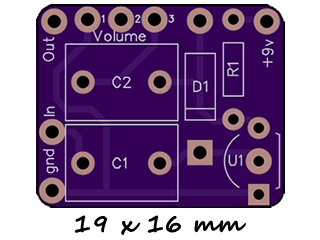

Dimensions: 19mm x 16mm

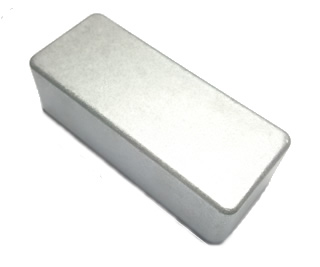

PCB Sizing: 1590a enclosure (no-special hardware required) or larger
*** Base price is for PCB only, please select kit options above to order kit components



Kit Options
Please select the kit options you would like included with your PCB from the checkboxes above

  Standard PCB Components
"PCB Components" includes all onboard components you need to build the "7 Min Fuzz". Battery snap is included as well as 6 lenghts of wire. Also includes, LED, current limiting resistor ("medium" brightness) and plastic bezel for mounting the led to an enclosure.

  Experimenters PCB Components
(Discountinued) The 'Experimenters Kit' adds additional transistors, input caps & diodes and sockets in addition to the "Standard PCB components" for experimentation allowing you to customise the 7 min fuzz to your liking. Also included in the experimenter's kit are my beginner notes and explanations on how changing these components effects the output tone.

  9mm Potentiometer
Add a 9mm Alpha metal shaft potentiometer to your kit!


  Compact Mono Jacks (2 of)
"Compact Mono Jacks (2of)" include 2 Lumberg compact mono jacks with your kit. These jacks are small in size, a good choice for tight builds and beginners but can be used for any build. Please note you will need a stereo jack if you plan to power your effect with a battery. (Stereo jacks are available in the hardware section of this store).





  Miniature DC Jack

These DC jacks are very small and are suitable for any build not using a battery / battery switching. Especially good for 1590a builds as they are very compact.



  Knobs
These knobs are a high quality aluminium with a grooved circumference for a nice tactile feel and a full faced indicator line. They are small in diameter (13mm), can be used for any pot that has a 6.35mm shaft but will also fit the tight spacing needed for 1590a builds.





Downloads
Bill of Materials & Build Guide
Schematic



7 Min Fuzz Videos

Assembling a 7 Min Fuzz Kit
